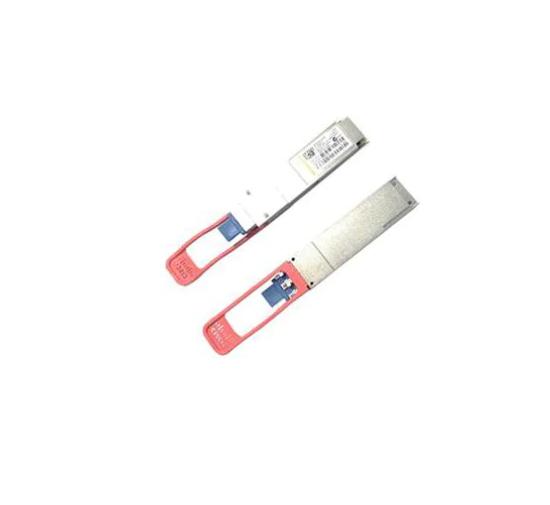

QSFP-40G-SR4-S 40GBASE-SR4 (IEEE 802.3ba Spec.) QSFP+ transceiver module for MMF, MPO/MTP connector

Name: QSFP40GSR4S 40GBASESR4 IEEE 8023ba Spec QSFP transceiver module for MMF MPOMTP connector
Brand: Cisco
Price: 200 USD

Brand Name : Cisco

Model Number : QSFP-40G-SR4-S

Certification : CE

Place of Origin : USA

MOQ : 1

Price : $200-$235

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 per week

Delivery Time : 1-2days

Condition : original new

Model : QSFP-40G-SR4-S

Cable Type : MMF

Power Consumption (W) : 1.5

Transmit Power (dBm) : Max:+2,4 per lane Min:-7.6 per lane

Transmit and Receive Wavelength (nm) : 840 to 860

Brand : Cisco

Core Size (microns) : 50.0

Contact Now

QSFP-40G-SR4-S Overview

The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	QSFP-40G-SR4-S
Description	Cisco 40GBASE-SR4 QSFP Module for MMF
Dimensions	13.5 x 18.4 x 72.4 mm
Wavelength (nm)	850
Cable Type	MMF
Core Size (microns)	50.0 50.0
Modal Bandwidth (MHz-km)	2000 (OM3) 4700 (OM4)
Cable Distance	100m 150m
Power Consumption (W)	1.5
Pull Tab Color	Beige

Product Details

Features and benefits of Cisco QSFP 40G modules:

● Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
● Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
● Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
● High-speed electrical interface compliant to the IEEE 802.3ba standard
● QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Compare to Similar Items

Table 2 shows the comparison.

Product Code	QSFP-40G-SR4	QSFP-40G-SR4-S=
Description	Cisco 40GBASE-SR4 QSFP Module for MMF	Cisco 40GBASE-SR4 QSFP Module for MMF
Dimensions	13.5 x 18.4 x 72.4 mm	13.5 x 18.4 x 72.4 mm
Wavelength (nm)	850	850
Cable Type	MMF	MMF
Core Size (microns)	50.0 50.0 50.0	50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)	2000 (OM3) 4700 (OM4)
Cable Distance	30m 100m 150m	100m 150m
Power Consumption (W)	1.5	1.5
Pull Tab Color	Beige	Beige
